EZCONN provide high performance microwave SMA & Reverse SMA connector up to 18GHz. It is applied for Telecommunication system, Mil/Aero, Vehicular equipment and instrumentation.
Introduction
Specifications
Related Products
Related Applications

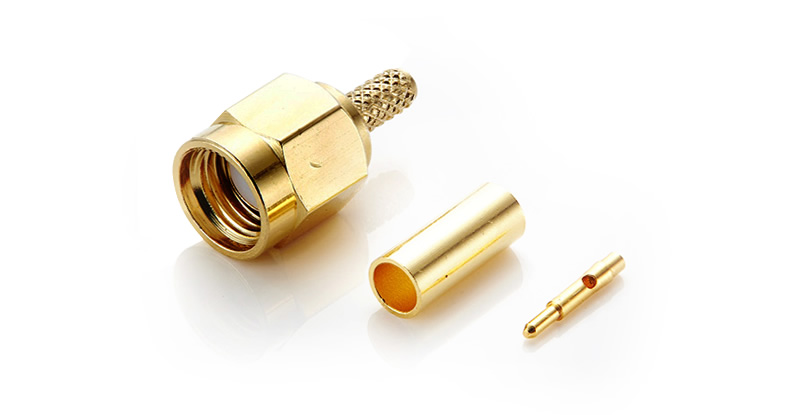

EZCONN provide high performance microwave SMA & Reverse SMA connector up to 18GHz. It is applied for Telecommunication system, Mil/Aero, Vehicular equipment and instrumentation.
Note: These characteristics are typical but may not apply to all connectors.
50 Ω
0-18GHZ
1/4-36 UNS
(-65°C to +165°C) (Teflon Insulator)
Brass or Stainless Steel
Plug: Brass or Stainless Steel
"Jack: Brass, Phosphor Bronze, Beryllium Copper"
PTFE, POM, PA9T, TPX

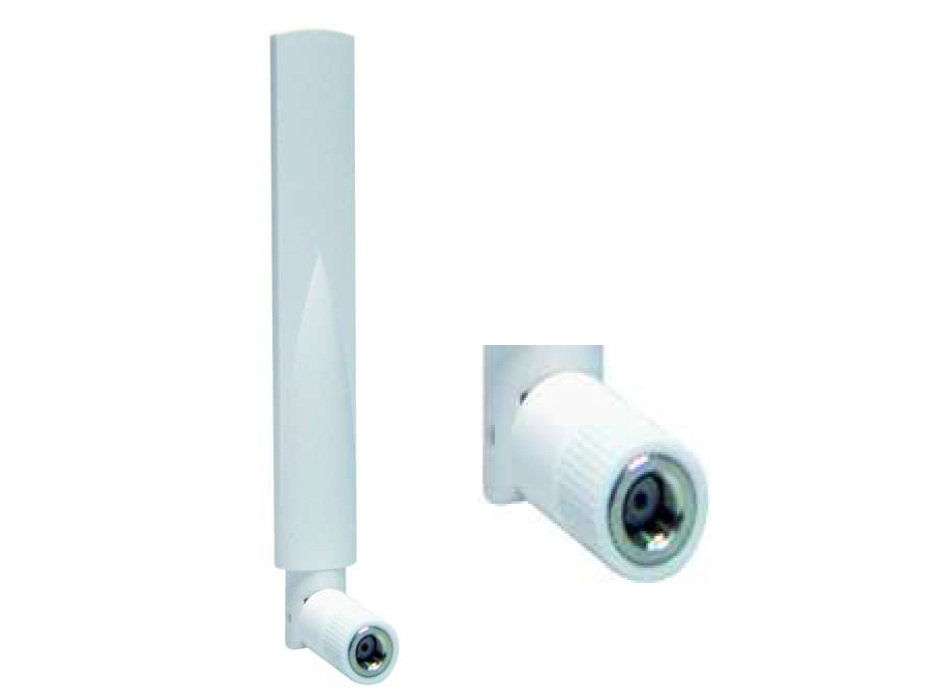

Dual Band Omni Directional Antenna is a 2.4/5GHz Dual Band Antenna equipped with SMA-type male connector. The antenna provides a 360-degree horizontal and wider vertical coverage which is quite suitable for outdoor short-range application, especially to provide the wireless access for laptops and smartphones.
Compatible with 2.4/5GHz 802.11n devices
Optimal 4.5dBi high gain in 2.4GHz and 7dBi high gain in 5GHz
Flexible SMA-type plug (male) connector fits all outdoor wireless equipment with an SMA -type jack (female) antenna connector
IP67 case protection
Compact-sized housing, lightning design
360 degrees of wireless network coverage, no aiming required
No configuration or installation software required

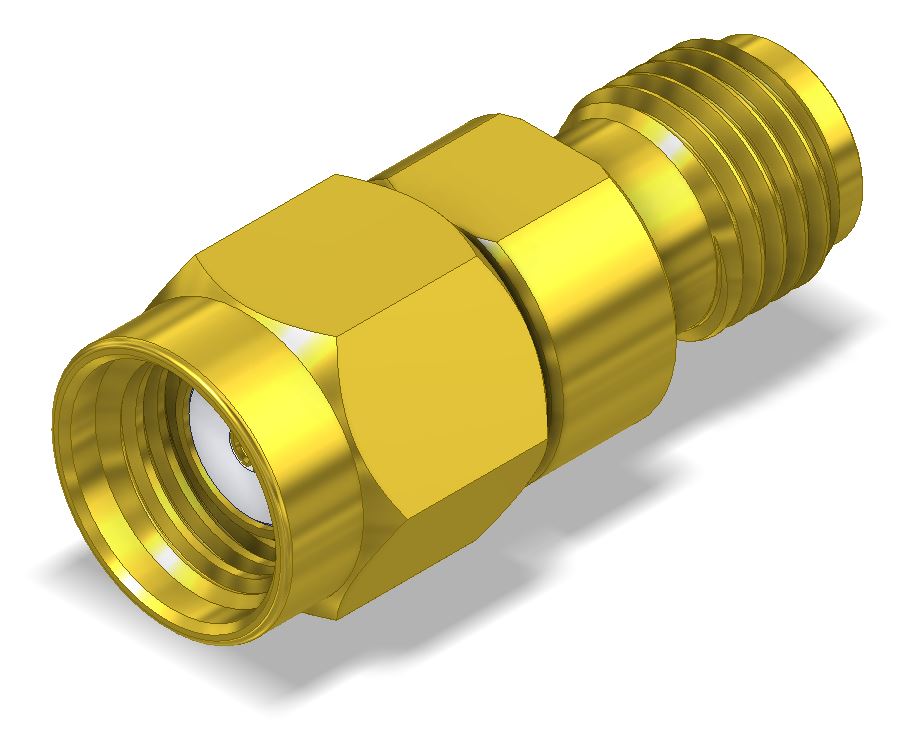

Reverse SMA Plug to Reverse SMA Jack Adaptor, Commercial Grade SMA Series Adapter
Connectors: RP-SMA Male to RP-SMA Female
Nickel-Plated Machined Brass Construction
Gold-Plated Contacts – Teflon Insulator
Impedanec:50Ω

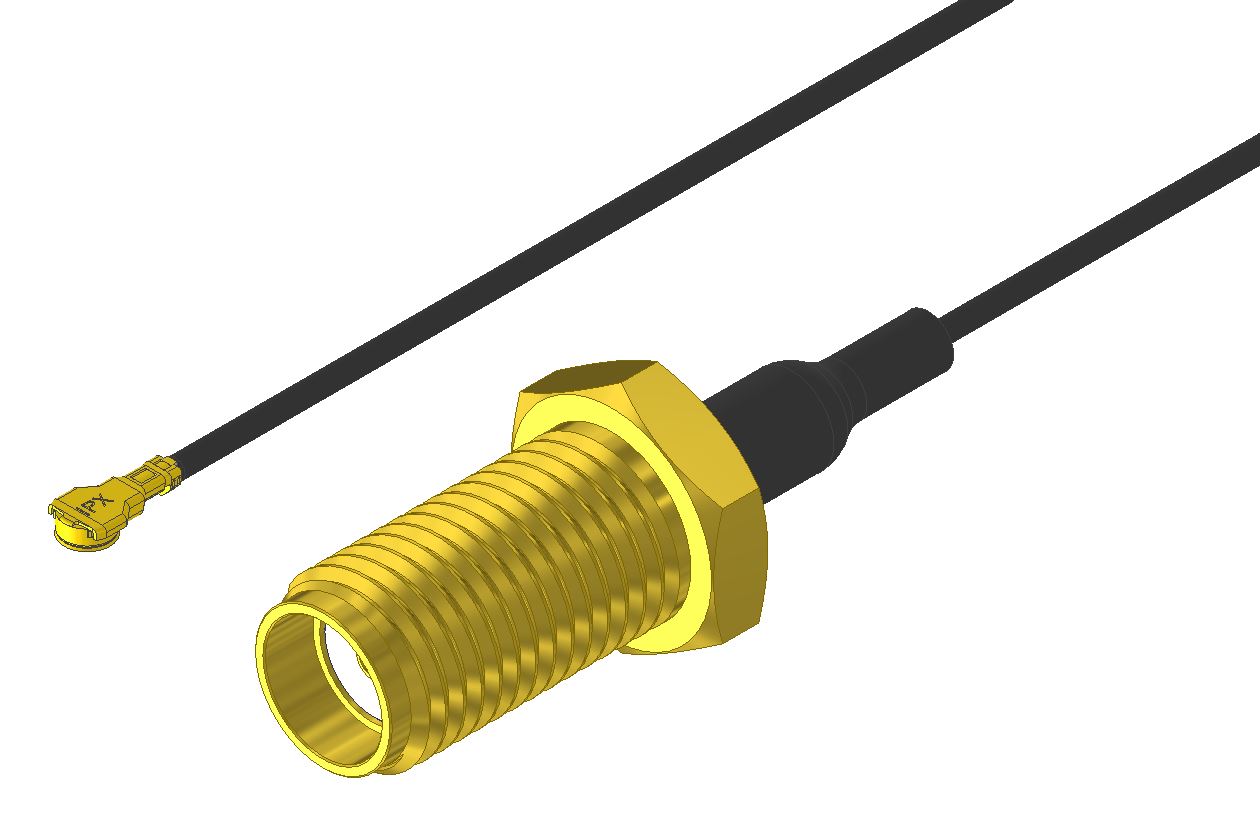

IPEX MHF4 to SMA JACK Jumper Cable, Product Series: SMA JACK to MHF4 cable
Family: Coaxial, RF pigtail cable
Gender: SMA Female /U.FL./MHF4
Cable Length: 5cm,10cm,15cm,25cm,50cm
Cable type: 0.81 cable
Impedance:50Ω
Temperature:-20℃～+70℃
VSWR:≤1.5
Frequency Range:DC～9GHz
Color: black

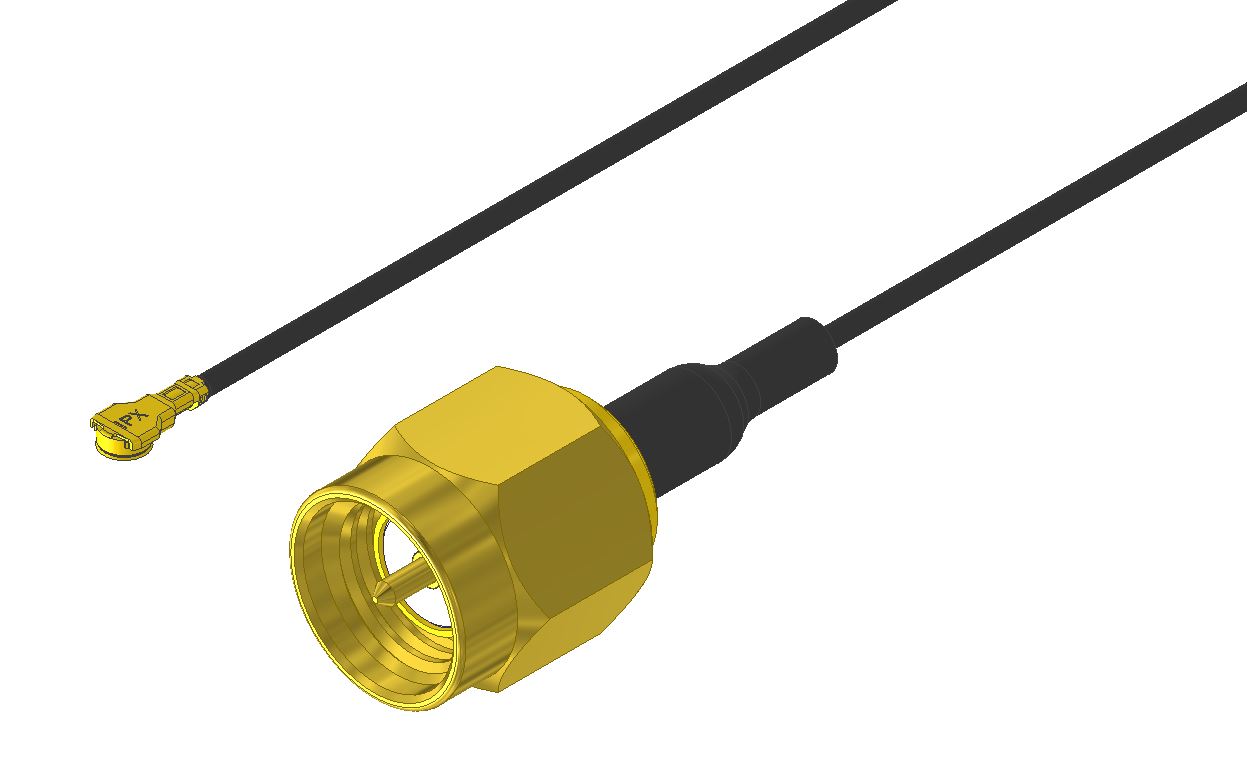

IPEX MHF4 to SMA Plug Jumper Cable, Product Series: SMA PLUG to MHF4 cable
Family: Coaxial, RF pigtail cable
Gender: SMA Male / U.FL./MHF4
Cable Length: 5cm,10cm,15cm,25cm,50cm
Cable type: 0.81 cable
Impedance:50Ω
Temperature:-20℃～+70℃
VSWR:≤1.5
Frequency Range:DC～9GHz
Color: black
