Frequency range : 0 ~ 6 GHz
VSWR : 1.3
Note: These characteristics are typical but may not apply to all connectors.

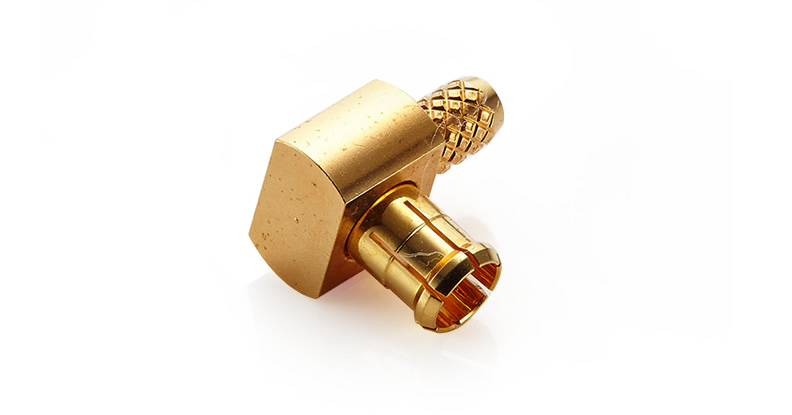

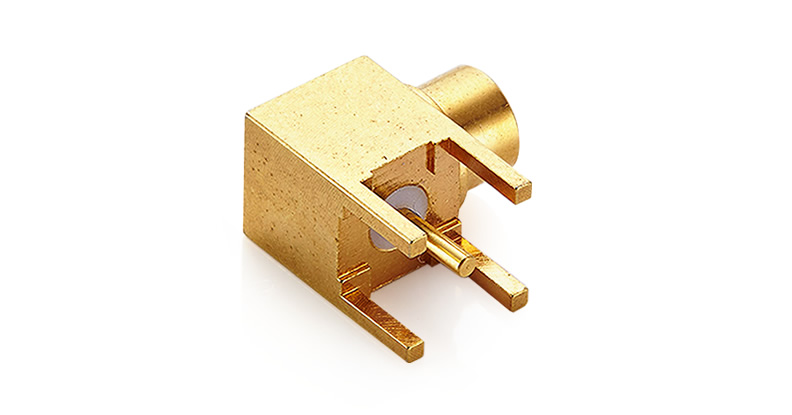

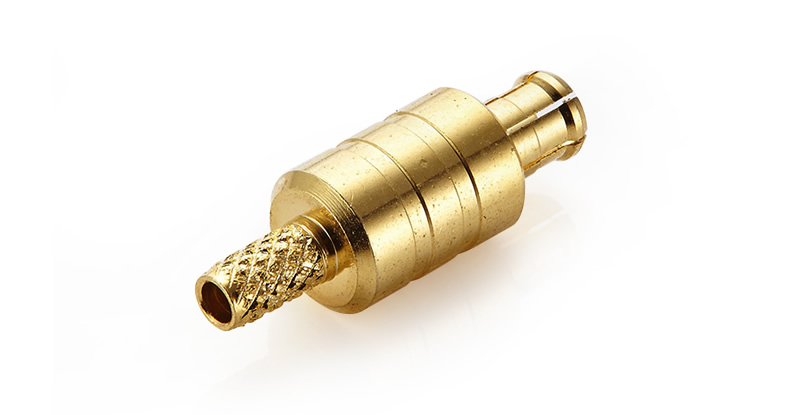

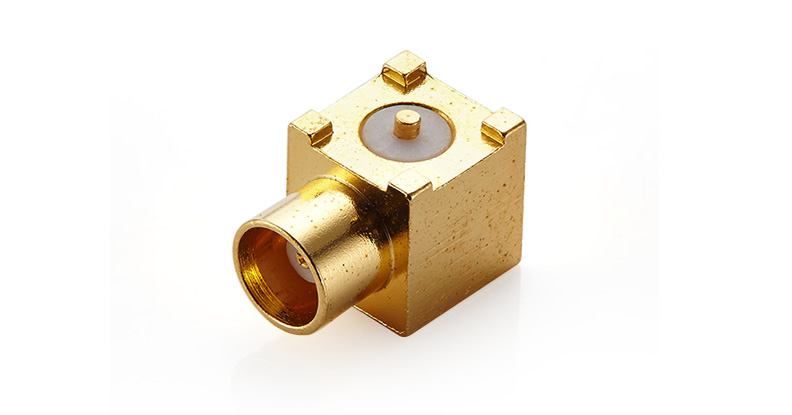

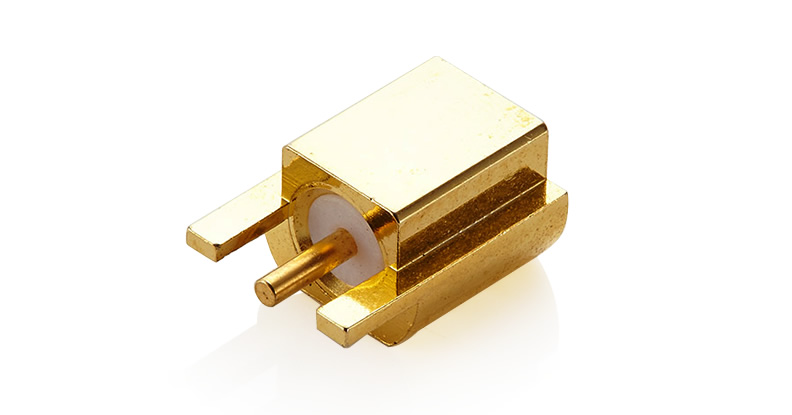

MCX Connector
EZCONN provide high performance with same size of inner contact as SMB connector but are 30% smaller.
the MCX connector features secure, fast and easy snap-on/ snap-off coupling.
It can be applied for Telecommunication system, Radio , Video, Automotive system, head end equipment.
Product Consult
Introduction
Specifications
Related Products
Related Applications
Introduction
介紹
Specifications
規格表
DRAG TO VIEW
Specifications
Impedance
Frequency
Temperature Range
50Ω / 75Ω
0-6GHZ
(-65°C to +165°C) (Teflon Insulator)
DRAG TO VIEW
Material
Body, Metal Parts
Center pin/ inner contact
Insulator
Brass or Stainless Steel
Plug: Brass or Stainless Steel
"Jack: Brass, Phosphor Bronze, Beryllium Copper"
PTFE, POM, PA9T, TPX
