Frequency range : 0 ~ 11 GHz
VSWR : 1.5
Passive Intermodulation: −165 dBc

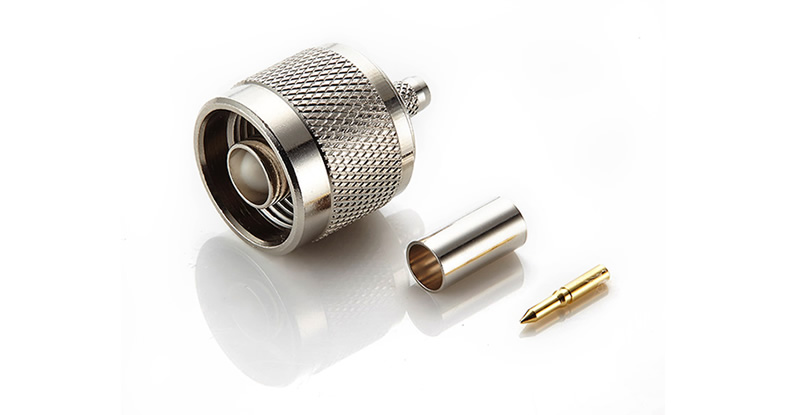

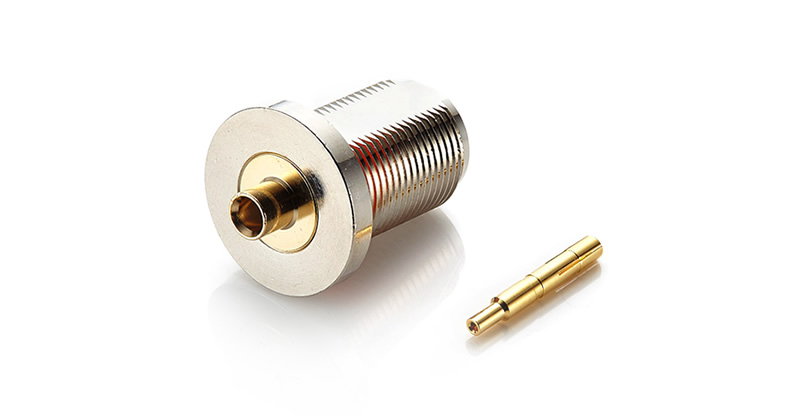

N Connector
EZconn offers high PIM spec N type & 7/16 type connector for infrastructure / base station antenna. Also can customized different shape & connector type interface of surge arrestor.
Product Consult
Introduction
Specifications
Related Products
Related Applications
Introduction
介紹
Specifications
規格表
DRAG TO VIEW
Specifications
Impedance
75 Ω
Frequency
------
Temperature Range
(-40°C to +80°C)
DRAG TO VIEW
Materials
Body, Metal Parts
Brass Alloy
Center pin/ inner contact
Plug: Brass
Jack: BeCu, Phosphor Bronze
Insulator
PTFE, PA9T, Delrin, PP or PBT
Related Products
關聯產品
7/16 series
The 7/16-series connectors exhibit superior electrical characteristics and exceptional passive intermodulation (PIM) performance. These connectors are engineered for high mechanical robustness and stability — they are waterproof and highly resistant to vibration. Moreover, due to the 7/16 design’s ability to minimize signal distortion caused by intermodulation, they are ideally suited for deployment in base station infrastructure and broadcast communication systems.
Surge Arrester
A surge arrester is a device to protect electrical equipment from over-voltage transients caused by lightning. EZconn offers various N-type/TNC-type...etc surge arresters for different purposes.
DAS Connectors
4.3-10 connectors are used in 5G antenna installations in Europe. For an RF connector used in similar applications in other regions, see 7/16 connector. EZconn offers various 4.3-10 connectors for different purposes, including compression/ crimp / PCB connectors, adapter.
