Features
- Compliance with IEC, JIS, Telcordia
- Low insertion loss & Ultra low back reflection
- Strong side-pull strength
- Compliance with RoHS
- Wide operating temperature: -40℃ ~ +85℃

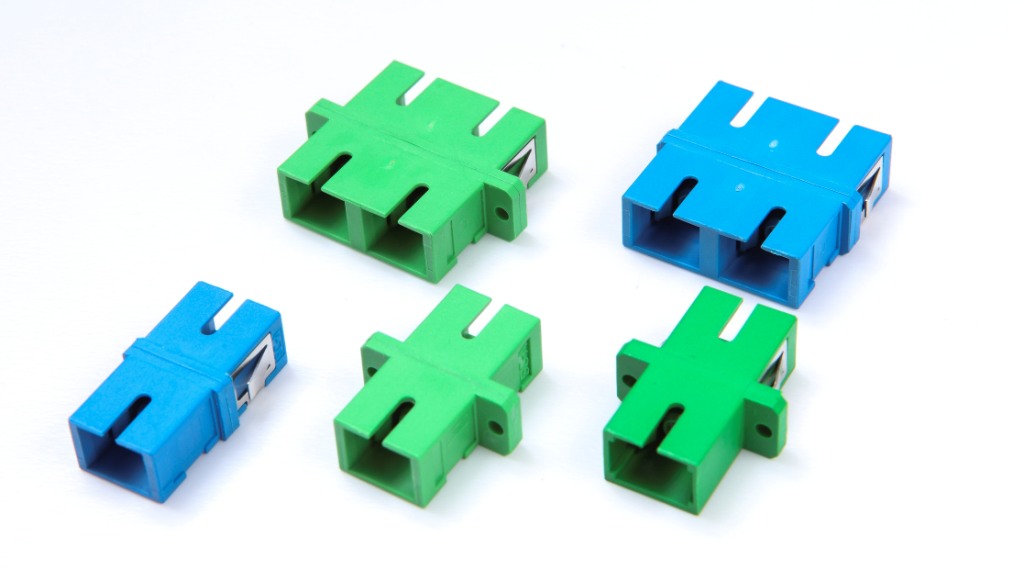

SC Adaptor

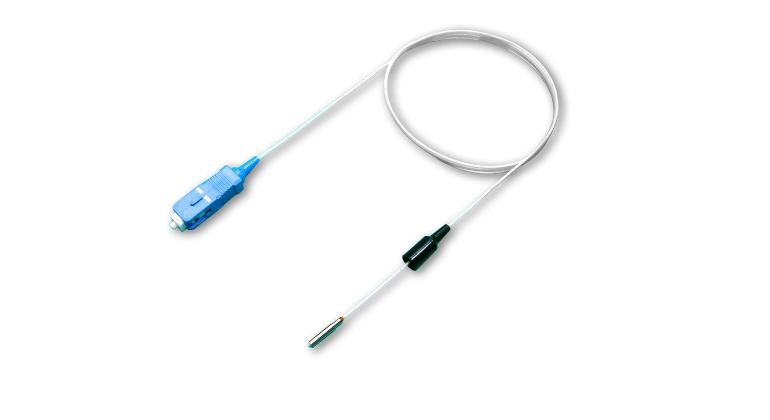

SC Connector

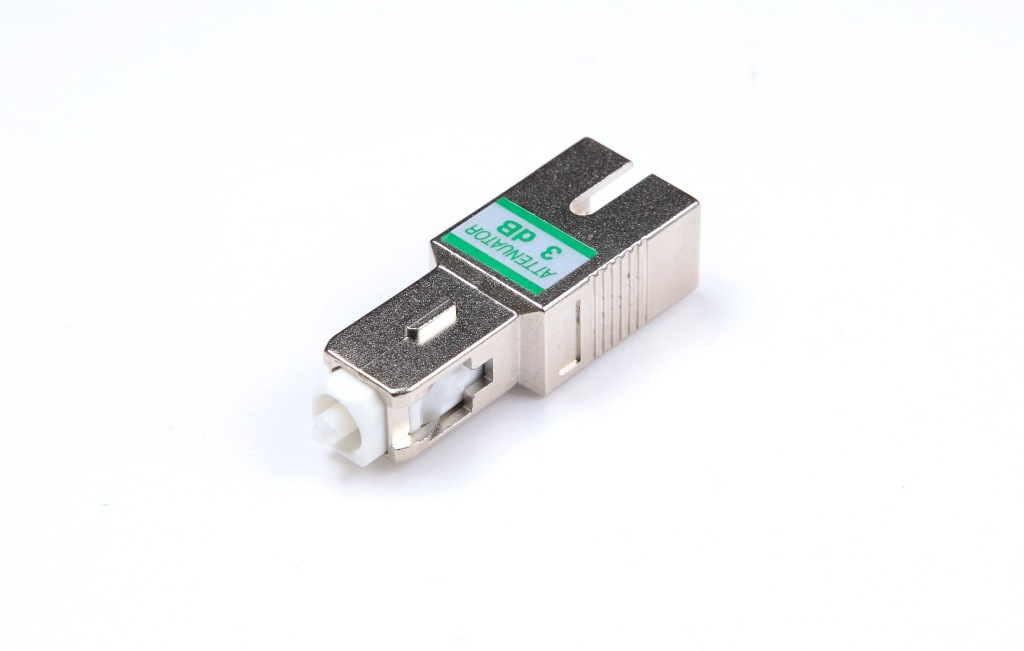

SC Attenuator

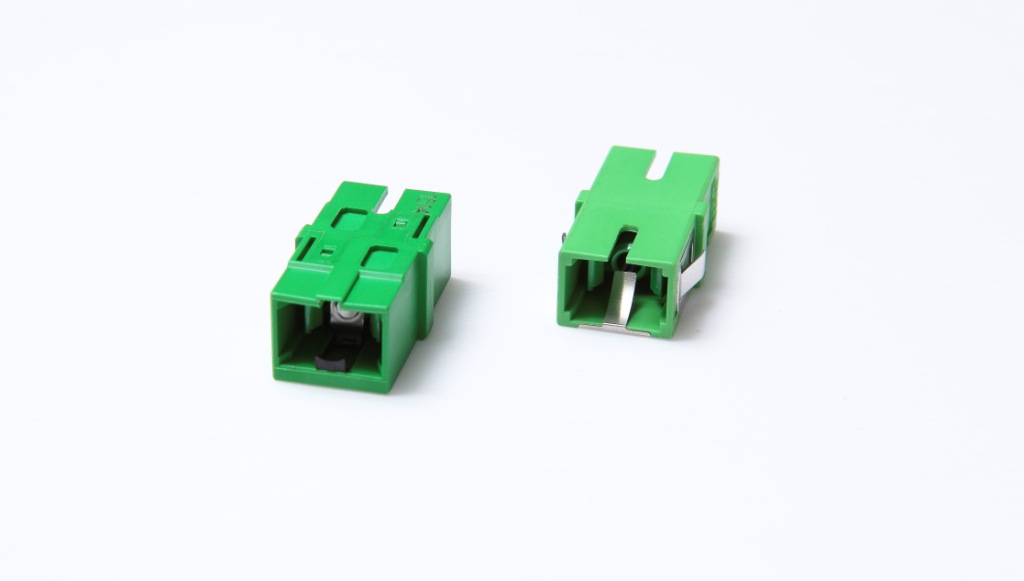

SC Adaptor
SC
SC Series
Technology Transfer from NTT JAPAN in 1993
Product Consult
Introduction
Specifications
Related Products
Related Applications
Introduction
介紹
Application
CATV / Access networks
Telecommunications
Data communications
Component termination
Test equipment
Specifications
規格表
*note: to meet IEC random mating grade B IL≦ 0.25dB for >97% of sample
DRAG TO VIEW
CONNECTORS / PATCHCORDS / PIGTAILS
SPECIFICATIONS
SM PC/UPC
SM APC
MULTIMODE
Insertion Loss (dB)
≦ 0.3
≦ 0.3
≦ 0.5
Return Loss (dB)
≧ 50 / 55
≧ 65
-
Cable Type
0.9 / 2.0 / 3.0 / Zip cable
0.9 / 2.0 / 3.0 / Zip cable
DRAG TO VIEW
CONNECTORS / PATCHCORDS / PIGTAILS
SPECIFICATIONS
Grade B SM PC/UPC/APC
Mean IL(against master)(dB)
≦ 0.1
Max IL(against master)(dB)
≦ 0.20 (97%)
Mean IL(random mating)(dB)
≦ 0.12
Max IL(random mating)(dB)
≦ 0.25 (97%)*
DRAG TO VIEW
ADAPTORS
SPECIFICATIONS
SM PC/UPC
SM APC
MULTIMODE
Sleeve
Zirconia/Phosphor bronze
Zirconia
Phosphor bronze
Housing Color
Blue
Green
Beige
Housing Type
Simplex / Duplex
Simplex / Duplex
Simplex / Duplex
DRAG TO VIEW
ATTENUATOR
SPECIFICATIONS
SM PC/UPC
SM APC
Return Loss (dB)
≧ 50 / 55
≧ 65
Uniformity
±1dB FOR ATTENUATION 1~10dB
±0.1×VdB FOR ATTENUATION 11~25dB
±1dB FOR ATTENUATION 1~10dB
±0.1×VdB FOR ATTENUATION 11~25dB
